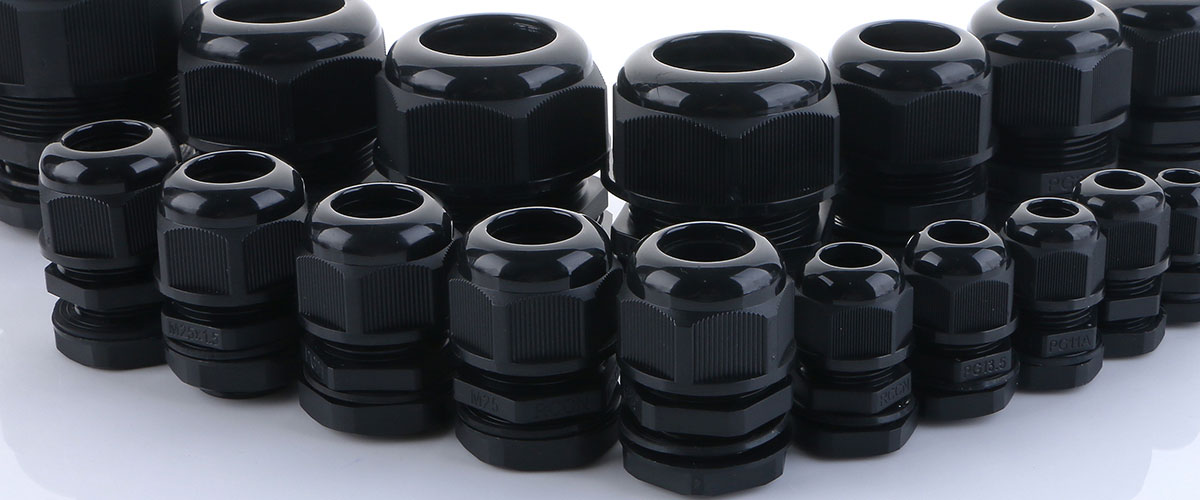

나일론 케이블 글 랜드 PGA - 케이블 글 랜드

RCCN 나일론 케이블 글 랜드 PGA

글타래 (쓰레드) : DIN 표준, NPT, G
재질 : A.C.E.F는 Rohs 승인 NYLON66, B.D는 EPDM 제

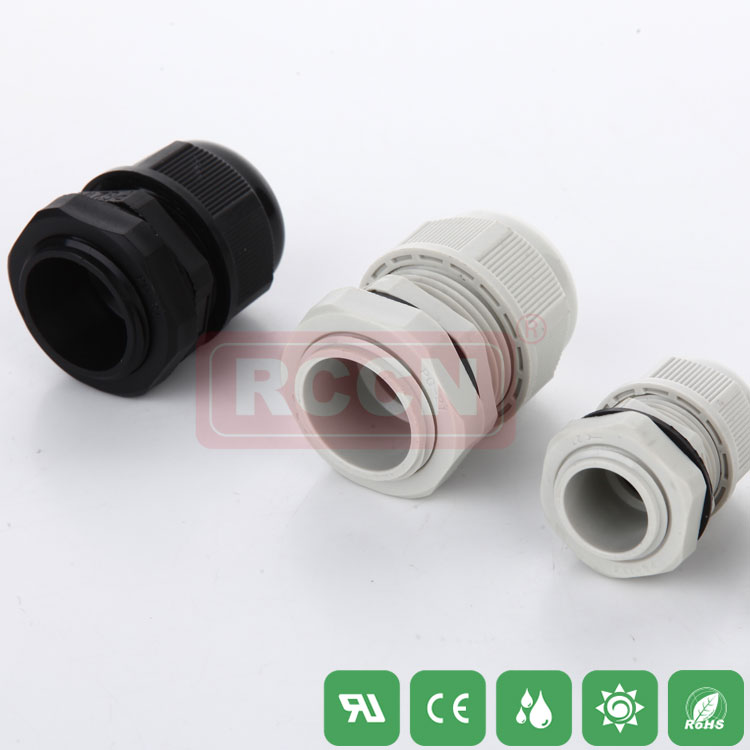

증명서 : UL (Nylon66), CE, ROHS
내화성 : UL94V-2.
작동 온도 : -40 ° C ~ 100 ° C.
보호 등급 : IP68.
색상 : 밝은 회색 (RAL7035), 검정색 (RAL9005)

나일론 케이블 글 랜드 PGA

제품번호.		실	케이블범위 ￠	실 O.D. D1	패널 설치 구멍	실 길이 L1	스패너 크기 A&F
검은	화이트	실	케이블범위 ￠	실 O.D. D1	패널 설치 구멍	실 길이 L1	스패너 크기 A&F
PG7A-05B	PG7A-05G	PG7	3-5.5	12.5	12.5-12.8	8	17/19
PG7A-08B	PG7A-08G	PG7	4-8	12.5	12.5-12.8	8	17/19
PG9A-05B	PG9A-05G	PG9	3-5.5	15.2	15.2-15.8	8.2	22/19
PG9A-08B	PG9A-08G	PG9	4-8	15.2	15.2-15.8	8.2	22/19

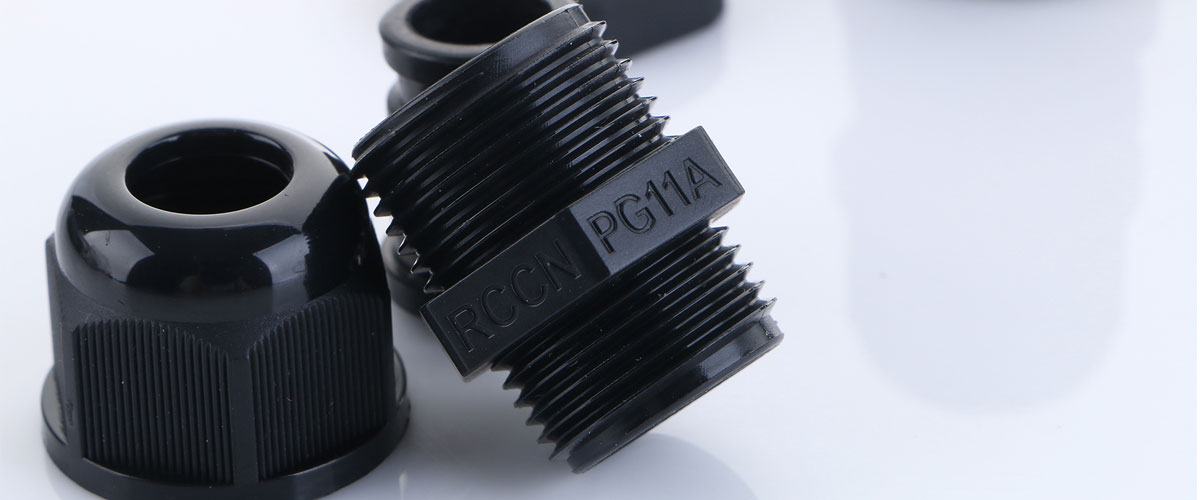

PG11A-07B	PG11A-07G	PG11	4-7	18.6	18.6-18.9	10	24/22
PG11A-10B	PG11A-10G	PG11	5-10	18.6	18.6-18.9	10	24/22
PG13.5A-08B	PG13.5A-08G	PG13.5	4-8	20.4	20.4-20.7	10	27/24
PG13.5A-12B	PG13.5A-12G	PG13.5	6-12.5	20.4	20.4-20.7	10	27/24
PG16A-11B	PG16A-11G	PG16	6-11	22.5	22.3-22.8	10.8	30/27
PG16A-14B	PG16A-14G	PG16	9-14	22.5	22.3-22.8	10.8	30/27
PG21A-16B	PG21A-16G	PG21	10-16	28.3	28.3-28.7	12	36/33
PG21A-18B	PG21A-18G	PG21	13-18	28.3	28.3-28.7	12	36/33
PG29A-22B	PG29A-22G	PG29	15-22	37.0	37.0-37.4	12	46/41
PG29A-25B	PG29A-25G	PG29	18-25	37.0	37.0-37.4	12	46/41
PG36A-25B	PG36A-25G	PG36	20-26	47.0	47.0-47.4	14	51/52
PG36A-30B	PG36A-30G	PG36	24-31	47.0	47.0-47.4	14	51/52
PG42A-32B	PG42A-32G	PG42	25-33	54.0	54.0-54.4	15	64/62
PG42A-40B	PG42A-40G	PG42	30-41	54.0	54.0-54.4	15	64/62
실 G
GGA3/8-07B	GGA3/8-07G	G3/8	4-7	16.662	16.6-16.9	10	22/22
GGA3/8-10B	GGA3/8-10G	G3/8	5-10	16.662	16.6-16.9	10	22/22
GGA1/2-08B	GGA1/2-08G	G1/2	4-8	20.955	20.9-21.3	10	27/24
GGA1/2-12B	GGA1/2-12G	G1/2	6-12.5	20.955	20.9-21.3	10	27/24

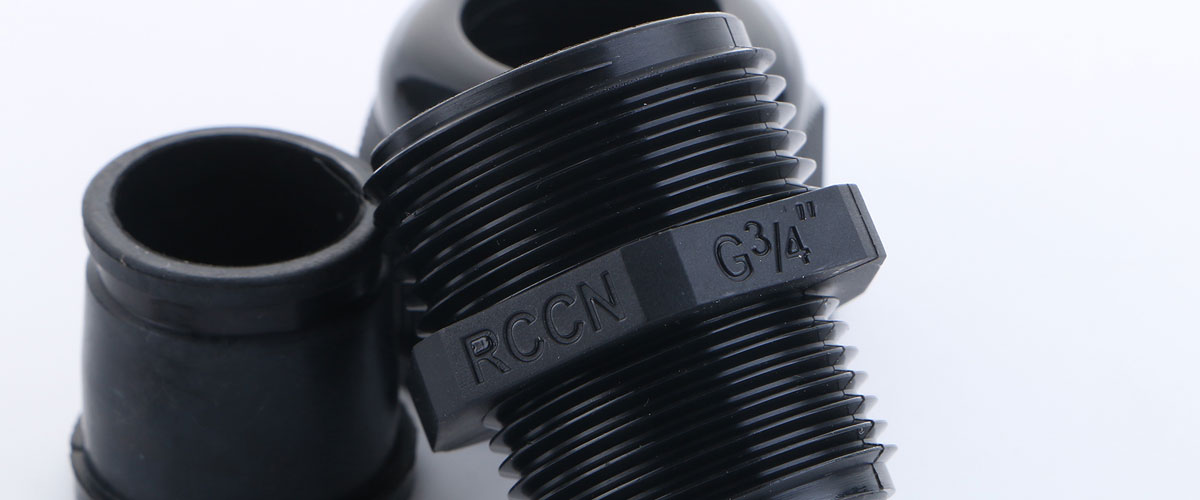

GGA3/4-13B	GGA3/4-13G	G3/4	7-13	26.441	26.4-26.6	12	36/33
GGA3/4-18B	GGA3/4-18G	G3/4	12.5-18	26.441	26.4-26.6	12	36/33
GGA1-25B	GGA1-25G	G1	17-25	33.249	33.2-33.4	15	46/41
GGA1-1/4-25B	GGA1-1/4-25G	G1-1/4	17-25	41.91	41.9-42.1	15	57/52
GGA1-1/4-32B	GGA1-1/4-32G	G1-1/4	24-32	41.91	41.9-42.1	15	57/52
GGA1-1/2-33B	GGA1-1/2-33G	G1-1/2	25-33	48	48-48.5	22	60/62
GGA1-1/2-40B	GGA1-1/2-40G	G1-1/2	30-41	48	48-48.5	22	60/62
